PicaSTAR Transceiver



Amateur Radio - W4ZCB

In well over 50 years of Amateur Radio, I have built antennas, receivers, transmitters, transceivers, transverters and test equipment. Here is my FIRST effort at a DSP radio. Peter Rhodes, G3XJP, designed and built the STAR, (Software Transmitter And Receiver), and I was fortunate to be invited to construct a Beta radio. A few innovations on my part, but that's what homebrew is for. To make it YOUR way.

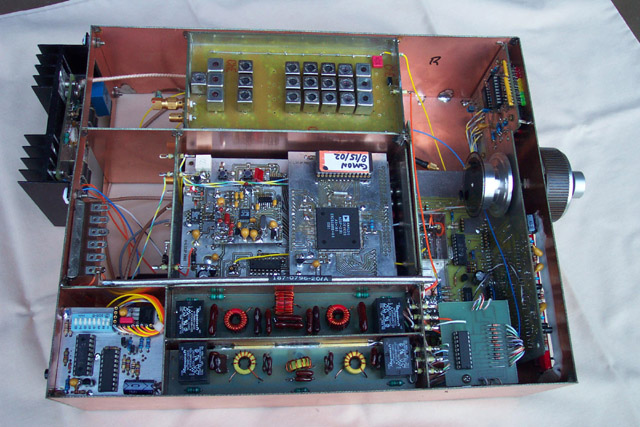

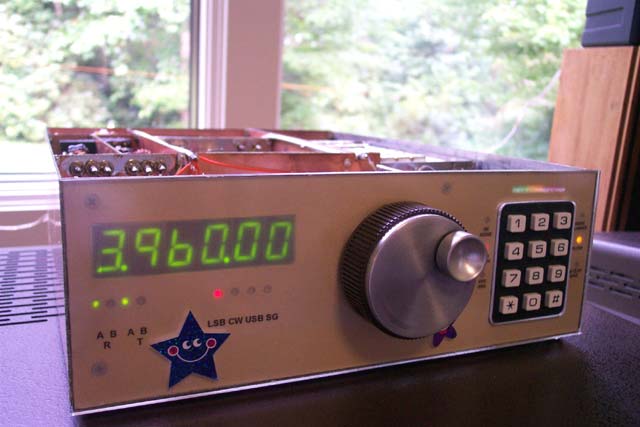

Up and running these days, and quite a radio. I had difficulties with my LO, and friend John, (G6AK) helped out with a complete new DDS board layout. I built that, and after seeing a picture of his radio, shamelessly copied his front panel. (Well, tried to, not as pretty as his, but functional). 160-10 meters, bells and whistles galore. Intercept and dynamic range both better than my Signal One, and better than most radios you can buy today. This one is a definite keeper. Anyone with transparent shielding material, please contact me. The insides of this thing are much too impressive NOT to be able to see them!


Clicking on any picture below will open in a new window.


The STAR Transceiver
